Now one of the most replicated classic race bikes, Alan Cathcart took to the track onboard one of only four genuine Drixton Honda 500s!.. Words: Alan Cathcart Photos: Kyoichi Nakamura

The chance to ride the genuine original ex-Terry Dennehy 500cc Drixton Honda now once again owned by Herman Timman, the man who won the 1972 Dutch 500cc Championship on the bike, came on the 2.5km public roads circuit laid out on the edge of Basse.

Basse is a village just 100km northeast of Amsterdam that for the past three decades has staged the Basse TT Historic racing event held annually in September, it's where Alan was blessed with the chance to take Terry's 500 for a spin.

Basse is a village just 100km northeast of Amsterdam that for the past three decades has staged the Basse TT Historic racing event held annually in September, it’s where Alan was blessed with the chance to take Terry’s 500 for a spin.


Read the full history on this amazing bike, the riders and the creators here…

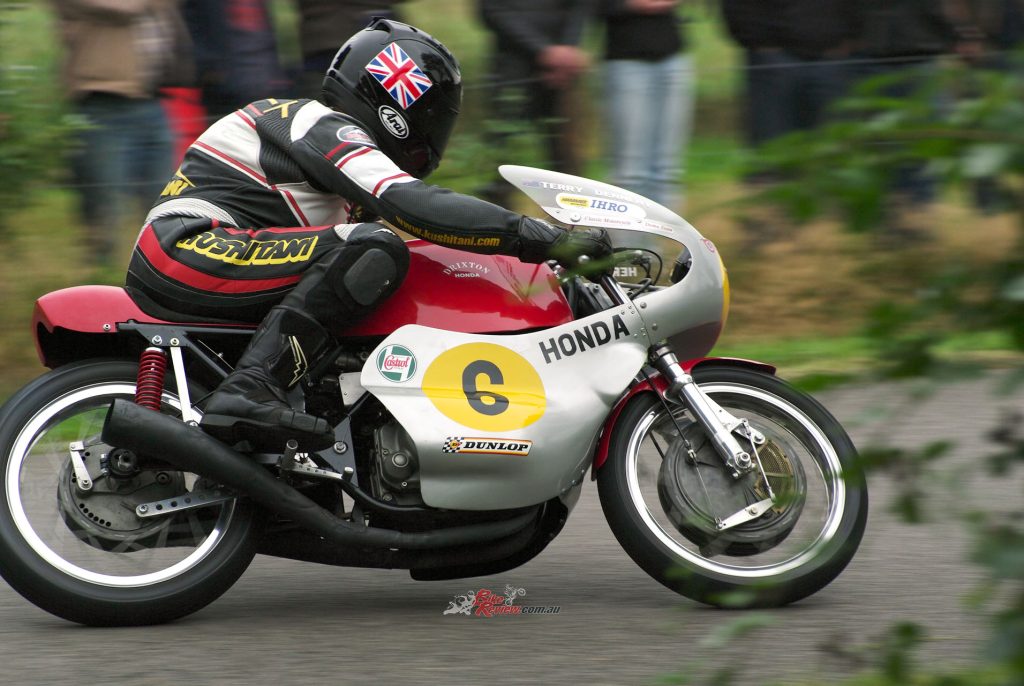

Being asked to open the course for the day’s events via a three-lap dash in solitary splendour aboard the Drixton Honda meant I had to combine course-learning with understanding how to ride the bike, all very much in public under the eyes of the hundreds of fans lining the track. I needn’t have worried, though – because the Drixton Honda proved uncannily similar to ride to one of its closest rivals to be best of the rest behind Ago’s MV in the 1969/70 GP seasons, the ex-Billie Nelson 500 Paton I owned and raced in the early days of IHRO’s Historic GPs more than a quarter of a century ago.



Like the Paton, the Honda is a 180º parallel-twin (so, one-up/one-down) with a patch of megaphonitis from its twin exhausts between 5,000-5,500 rpm that you have to work the clutch to try and avoid. But it pulls pretty strongly from 3,000 rpm upwards, so drove well down low out of the trio of hairpins on the Basse circuit.

Herman Timman was no stranger to this bike, being reunited with it after selling it, he had to buy it back. It's now almost identical to how it was when he raced it in the 70s!

Herman Timman knows this bike like the back of his hand. After being reunited with it after selling it, he had to buy it back. It’s now almost identical to how it was when he raced it in the 70s!

However, Herman Timman had the bike still geared for his previous outing on it at the annual Bikers Classic meeting on the big Spa-Francorchamps GP circuit, and while Basse has a pretty fast high-speed section past the finish line, followed by some swoopy but satisfying high-speed curves, it took me until the last of my three sessions on the bike to manage to pull a genuine top gear (fifth) there on the Spa Francorchamps gearing.

Being overgeared meant using bottom gear three times per lap at the hairpins, exploiting the tuned Honda engine’s low down pull to drive hard out of each of them.

Being overgeared meant using bottom gear three times per lap at the hairpins, exploiting the tuned Honda engine’s low down pull to drive hard out of each of them.”

Being overgeared meant using bottom gear three times per lap at the hairpins, exploiting the tuned Honda engine’s low down pull to drive hard out of each of them, short-shifting into second, then fingering the clutch lever to coax it through the five grand hurdle in the power delivery, before running it up to the 9,000 rpm limit in the gears that Herman uses on the bike today.



10,500rpm was the redline in the old days, 100 revs more than the Paton whose 73.5 x 57.5 mm dimensions were essentially the same as the 74 x 57.8 mm Honda, but whereas on the green Italian bike it was really critical to use the last thousand revs because of the extra dollop of top end power available there, the Drixton’s Honda engine is more torquey, with a stronger midrange pull in its 7,000-9,000 rpm happy zone – and yes, I did rev it to ten grand once. Sorry, Herman!

Preserving such an iconic bike meant not overrevving it. Alan had to take it to the redline at least once though!

Preserving such an iconic bike meant not overrevving it. Alan had to take it to the redline at least once though!

This greater flexibility would have made the Honda a good tool for tighter tracks like the seaside round-the-houses races on the Adriatic Riviera in which Terry Dennehy started each season and did OK at with the Honda, as well as the Yugoslav GP’s tight, twisty Opatija road course he also excelled at.


Check out our other Throwback Thursdays here…


With the motor they used as the basis of their bike being the earlier four-speed CB450 mill, Dennehy and Hannan must have sourced a five-speed race cluster from the copious number of specialist companies in northern Italy who supplied such hardware to all the myriad small manufacturers and race teams based there.



Hence the one-down street-pattern left-foot gearchange – identical to the Honda streetbikes Dennehy learned his racing trade on, and the CR93 production racer he initially raced in Europe – is pretty slick, with the top three ratios pretty close together in what is a typical Italian 1960s gearbox aimed at keeping up the revs on a fast track like Monza, Imola or Siracusa.

"After stalling the Drixton a couple of times in the paddock, I realised you have to find neutral on the move – there’s no chance of doing so once you come to a stop."

“After stalling the Drixton a couple of times in the paddock, I realised you have to find neutral on the move – there’s no chance of doing so once you come to a stop.”

However, although there’s quite a big gap between bottom gear and second and another to third, neutral was extremely hard to find. After stalling the Drixton a couple of times in the paddock, I realised you have to find it on the move – there’s no chance of doing so once you come to a stop, as Herman confirmed. But races began with a dead engine start back when he won his Dutch title with the Honda, so stalling it because I couldn’t find neutral meant I ended up getting a good grounding in the required push start technique, which is just as tricky on the Drixton Honda as on the hard-to-start Paton.



Even with the long Spa gearing fitted it’s better to use second gear, then catch the engine as the 180º crank fires on one cylinder and the other one joins in, leap aboard, hit bottom gear, and then go for it. You need lightning reflexes to catch the engine on the clutch as it fires, and then heaps of clutch to pull away in second on the long gearing, abuse of which Herman says leads to problems, so don’t be tempted. I wasn’t.



Push-starting the bike in a crowded grid must have been pretty tricky, and the Kawasaki/Suzuki two-stroke opposition would have been shifting into third gear by the time you’d have got the Honda fired up, used the clutch to head for the promised land above 5,500 rpm where the engine pulls hardest, and were then ready for action.

When it catches fire the Honda engine sounds gloriously angry, as expressed via the loud roar emitted by its pair of open meggas

“When it catches fire the Honda engine sounds gloriously angry, as expressed via the roar emitted by its open meggas.”

When it catches fire the Honda engine sounds gloriously angry, as expressed via the loud roar emitted by its pair of open meggas. It has a superb exhaust note that you’re aware of all the time you’re aboard it – deep, meaty, powerful and fruity. But then I don’t think I’ve ever come across a racing Honda engine which didn’t sound great, so no wonder Herman Timman admits this was one of the things that turned him on to buying the bike when first offered it.


Check out our other Throwback Thursdays here…


The throttle action is very light, thanks to the car-type butterflies in the twin-choke Weber carb, which betrays its automotive origins by the way it doesn’t much like part-throttle openings. There’s a strong pickup out of a turn if you crack it wide open, but feed the throttle in gradually transiting a tighter bend and it hunts slightly, then splutters before clearing itself and coming on strong as you ease the throttles open. Using the Honda engine hard is an acquired skill compared to the Paton fitted with twin cylindrical-slide Dell’Ortos.



But the biggest asset of the Drixton Honda is the excellent handling bordering on the superb delivered by Marly Drixl’s duplex chassis, which I well remember from when I rode the ex-Brennigan bike over thirty years ago was literally a revelation. I never expected it to handle as well as it did when I first tested it at Brands Hatch, then when Pete Johnson kindly allowed me to race it at Daytona in 1988 as a thank-you for sourcing him the bike, I was seriously impressed both by its stability on the banking and its infield agility as I raced it to fourth place in the Premier 500 event. The Drixton frame delivers literally the best of both worlds – it’s planted in the fast turns that predominate at big GP circuits like Monza or Spa, nimble in tighter tracks like Opatija or the Italian street races.

Alan was no stranger to Pete's Drixton 500, seen here testing it at Brands Hatch in 1984.

Alan was no stranger to Drixton Honda 500’s, seen here testing Pete Johnson’s one at Brands Hatch in 1984.

On the Basse TT public roads course Herman Timman’s ex-Denehy motherlode motorcycle displayed these very characteristics. Its Ceriani suspension was the benchmark kit of the late 1960s, and the way the bike goes round corners as if on rails is extremely confidence-inspiring. It feels safe, steady and sure, with neutral steering and predictable handling, plus another thing the Drixton frame shares with the not dissimilar-design Paton is the superb confidence-inspiring braking delivered by its pair of Fontana drums, the big 250mm four leading-shoe version fitted up front hauling the Honda down hard for the Basse circuit’s trio of slow turns with lots of feedback and not the slightest instability, backed up by its 210mm 2LS rear.



These were the outstanding stoppers of the pre-disc brake era, and actually worked a lot better than the early Japanese stainless steel discs, as I have personal experience of discovering with the XR750-TT Harley I raced for so long in Historic F750 events. I could never get this to stop properly until I replaced the original Honda stainless steel discs and their single-piston calipers that the H-D factory fitted for Renzo Pasolini to race the bike with, with a 250mm Fontana like the one on the Drixton Honda. It was job done….

Alan was left seriously impressed by the way the entire chassis was set-up. Impressive for something made by a single bloke with a dream.

Alan was left seriously impressed by the way the entire chassis was set-up. Impressive for something made by a single bloke with a dream.

The Drixton frame’s riding position is very ‘60s, with high footrests and a fairly long stretch over the fuel tank to the steeply dropped clipons. It feels pretty short and relatively porky, though, which with a 1340mm wheelbase it indeed is, plus the low seatback aids throwing a leg over it as you hop aboard after push-starting it, and the bulges in the lower fairing are good for tucking your toes behind.



By the time Herman acquired it the Honda had been fitted with the Kröber electronic ignition it now carries, matched by the same company’s tacho with a red reminder strip at 9,000 rpm, and a yellow one at 10,500 revs standing for $$$$!



Compared to the ex-Ray Brennigan Drixton Honda I rode many years ago before it headed Stateside to win AHRMA titles with Pete Johnson, this ex-Dennehy original is infinitely smoother-running, albeit with some low down vibration which smooths out the harder you rev the motor, exactly the same as on the Paton and typical of a bike running a 180º crank, whereas the two-up 360º variety tend to vibrate harder as revs rise. The Drixton Honda ran sweet as a nut down the Basse main straight, and I can imagine it must have been a good bike for the hour-long GP races that were commonplace back then.

Herman Timman has done a wonderful job looking after this important part of racing history. Continuing Terry Dennehy, his close friend, legacy...

Herman Timman has done a wonderful job looking after this important part of racing history. Continuing Terry Dennehy, his close friend, legacy…

Marly Drixl may have been a flamboyant character, but judging by my ride on Herman Timman’s ex-Terry Dennehy Drixton-Honda 500, he also knew a lot about building motorcycle frames. What a pity he didn’t stick at it – although many others around the world have done so for him. At least hey chose a good bike to copy!

1968 Drixton Honda 500 Racer Specifications

ENGINE:Air-cooled DOHC parallel-twin four-stroke with 180-degree crankshaft throw and central chain camshaft drive, 497cc, 12.2:1 Compression Ratio, 1 x twin-45mm choke Weber DCOE, Kröber self-generating electronic CDI, 74 x 57.8mm bore x stroke, 5-speed with gear primary drive, Multiplate oil-bath clutch with bronze Surflex plates.


CHASSIS:Tubular steel duplex cradle frame, Front: 35mm Ceriani telescopic forks, Rear: Tubular steel swingarm with 2 x Ceriani shocks, 27 degrees rake, Front: 2.75/3.75-18 Dunlop KR325 on WM2/1.85 in. Borrani wire-wheeled rim, Rear: 3.50 x 18 Dunlop KR174 on WM4/2.50 in. Borrani wire-wheeled rim, Front: 250mm Fontana four leading-shoe drum, Rear: 210mm Fontana twin leading-shoe drum.


PERFORMANCE: 108hp@7,500rpm (at wheel), 129kg dry, 50.5/49.5 weight distribution, 250 km/h (Spa-Francorchamps gearing)


OWNER: Herman Timman, Paasloo, Netherlands


1968 Drixton Honda 500 Racer Gallery
