The Drixton Honda 500 is one of the most replicated classic race bikes ever. Alan Cathcart tracked down all the history of this amazing bike in its heyday, a legendary Australian story...

It’s very unlikely that any other Japanese-engined Classic era road racer has been replicated as frequently around the world as the twin-cylinder Drixton Honda. A classic motorcycle race meeting isn’t complete without a silver and red Honda making its way through the pack!

The iconic red and silver livery of the Drixton Honda 500 is the choice of many around the world when it comes to building a replica 60s race bike...

The iconic red and silver livery of the Drixton Honda 500 is the choice of many around the world when it comes to building a replica 1960s race bike…

Created back in 1968 by Aussie Terry Dennehy and his mechanic mate Ralph Hannan to go 500GP racing affordably in the heyday of the Continental Circus, this privateer concoction entailed their tuning up a stretched twin-cylinder CB450 Honda K4 motor, and wrapping it in a frame made in Italy by Swiss man-of-many-parts, Othmar ‘Marly’  Drixl.


Created back in 1968 by Aussie Terry Dennehy and his mechanic mate Ralph Hannan to go 500GP racing affordably in the heyday of the Continental Circus…


A rider himself of no mean ability, Marly is best remembered for the small series of Drixton frames which he produced in the late 1960s for Aermacchi and Honda engines, originally under the aegis of the then British Aermacchi importer and former Norton works rider, the late Syd Lawton.



“Marly was one of those people who always made it his business to know what was going on,” recalled Lawton in an interview we made together before he passed away in 1997. “But despite this, and the fact that he always seemed to have some deal or other on the go, he was also just about permanently broke! I first came across him in 1964, not long after I began importing Aermacchis.”

Terry Dennehy (on the left) with Marly Drixl and the Drixton Honda back in 1968...

Terry Dennehy (on the left) with Marly Drixl and the Drixton Honda back in 1968…

“Marly was working on the production line at their factory, and living with his wife and young child in a van parked up by the nearby lake. He turned out to be the perfect intermediary for me in dealing with the people there, since I didn’t speak Italian and he did, as well as English and practically everything else – even though it became obvious he was interested in getting me to sponsor him to go racing!”



After their meeting Drixl did indeed race quite a bit in Britain on an Aermacchi with some help from Lawton, and it was on one of his visits to the UK in the mid-‘60s that the two discussed a problem which had recently arisen. The manufacturers of Avon tyres had pulled out of racing, and the new triangular Dunlop tyres which were a Hobson’s choice replacement for them proved quite unsuited to the already fingertip handling of the standard Aermacchi frame.

"Around 25 Drixton Aermacchi frames were built from 1965-69, some of which were snapped up by leading GP privateers such as John Hartle and Aussie Kel Carruthers."

Around 25 Drixton Aermacchi frames were built from 1965-69, some of which were snapped up by leading GP privateers such as John Hartle and Aussie Kel Carruthers.”

“Marly said he could make an Aermacchi chassis that would be much better suited to the Dunlops,” says Lawton, “if only I would provide him with the necessary materials. Well, I knew that if I gave him the money to buy enough steel tube to make a dozen frames, he’d probably end up only making one! Marly wasn’t dishonest, but cash burnt a hole in his pocket, which was why he was usually broke. Anyway, I staked him enough to build the first three frames, which he did in the Baroni engineering workshop in Milan, then he sold them through me as Drixtons – standing for DRIXl and LawTON chassis.” said Syd Lawton.


Read Alan’s full racer test on the Drixton Honda here


Around 25 Drixton Aermacchi frames were built from 1965-69, some of which were snapped up by leading GP privateers such as John Hartle and Aussie Kel Carruthers, who finished third in the 1968 350cc World Championship on such a bike behind the MV Agusta and Benelli fours. Not bad for a pushrod single – but the assured handling of the Drixton frame was a key element in this success. Many of the Drixton Aermacchis built back then are still around today, thanks perhaps to their sturdy but somewhat agricultural construction.

"The assured handling of the Drixton frame was a key element in this success."

“The assured handling of the Drixton frame was a key element in this success.”

“’Marly not only taught himself to weld on those early frames, he also built them without a set of engine cases, so that afterwards it was usually impossible to line everything up!” recalled Syd Lawton. “However, he did persevere, and eventually got it more or less right, although the main reason in my view the bikes handled quite well was the excellence of the Baroni forks he fitted to them.”

Terry Dennehy in 1966 at Oran Park on the Drixton Honda 500! One of Drixl's early customers...

Terry Dennehy in 1966 at Oran Park on the Drixton Honda 500! One of Drixl’s early customers…

One of Drixl’s customers for the Drixton Aermacchi frame had been Australian Continental Circus privateer Terry Dennehy, who was based in Milan, 50km from the Aermacchi factory. In Easter 1964 at the age of 19, he’d quite remarkably won his first ever motorcycle race by riding his standard Honda CB72 road bike to victory on the challenging Bathurst circuit in the Australian TT’s newly-instigated Lightweight Production class, after which he and his mechanic mate Ralph Hannan, both from Sydney, took up the racing game seriously.



The Honda was turned into an Open-class 350cc racer which took Dennehy to second place in the 1966 Australian TT at Bathurst, after leading until the final lap when the cam chain tensioner broke. Then with the Honda in 500cc guise he led the following year’s Phillip Island TT convincingly until the primary chain broke, and he crashed. Time for the two 22-year olds to join the exodus of Aussie up-and-comers to Europe, and become part of the Continental Circus.

"Terry bought a 350cc Aermacchi Metisse, but didn’t get on with it as well as the Honda, so swapped it for a Drixton frame, which is how he came into contact with Marly Drixl."

“Terry bought a 350cc Aermacchi Metisse, but didn’t get on with it as well as the Honda, so swapped it for a Drixton frame, which is how he came into contact with Marly Drixl.”

For his first season in Europe Dennehy raced a 12,000 rpm 125cc Honda CR93 that proved to be a good earner, delivering many wins in non-championship races in between periodic crankshaft failures. Terry also bought a 350cc Aermacchi Metisse, but didn’t get on with it as well as the Honda, so swapped it for a Drixton frame, which is how he came into contact with Marly Drixl.



Ralph and Terry initially spent the winter of 1967/68 in England, but hated the weather, so they headed south to Milan where they drew up plans with Marly for a 500GP racer powered by a Honda CB450 engine set in a Drixton frame – with Honda’s recent withdrawal from GP racing there was plenty of space for privateers to make a good living by battling to be best of the rest behind Ago’s solitary works MV Agusta triple.

"The DOHC CB450 Honda K4 parallel-twin roadster had first appeared in 1965, initially with a four-speed gearbox..."

The DOHC CB450 Honda K4 parallel-twin roadster had first appeared in 1965, initially with a four-speed gearbox…”

The DOHC CB450 Honda K4 parallel-twin roadster had first appeared in 1965, initially with a four-speed gearbox, and effectively ushered in the modern era of high-performance Japanese streetbikes. With its oversquare 70 x 57.8mm dimensions delivering 43bhp at 8,500rpm, the 445cc ‘Black Bomber’s’ lively performance brought it heaps of success in Production racing, it seemed an ideal basis for an inexpensive racer to rival Seeley G50s and Manx Nortons then forming the backbone of international grids, with ready availability of affordable spares a key advantage for the cost-conscious Aussies.



So Drixl designed a chassis and fuel tank for the engine late in 1967, and built up the first prototype over that winter, completing it early in 1968, although thanks to lack of money and the difficulty for Terry as a 500GP class novice in obtaining entries and start money, it wasn’t raced until the following season, by which time Honda had produced a uprated version of the street model with a five-speed gearbox.



Meantime the two Aussies set about tuning the CB450 Honda K4 engine, which remarkably enough came in two versions – with a two-up 360º crankshaft for the Japanese home market, and a one-up/one-down 180º type for the export version which formed the basis of the first Drixton Honda. However, the Aussies sourced a special lightweight 180º crank and conrods from the copious parts suppliers in northern Italy, then fitted Aermacchi valves (41mm inlets and 35mm exhausts) and coil valve springs, to replace the standard torsion-bar valve train the Honda engine came with – Honda’s designers had obligingly left plenty of space in the cylinder head for this modification.



The Aussies then bored the engine 4mm to 74 x 57.8 mm for 497cc using Aermacchi race pistons, ported the cylinder head, and fitted higher-lift American Webco race camshafts. Unusually for a motorcycle, the carburettor they used was a 45mm twin-choke DCOE Weber from an Alfa Romeo car, then a common piece of tuning kit for Italian and British sports cars, matched to exhaust pipes made for them by Rob North in England.



The stock Honda coil ignition was retained with full advance fixed at 45 degrees – Kröber self-generating electronic CDI wouldn’t be available for another couple of years – with the consequent handicaps of weight (a heavy 12v battery was required) and reliability at the sustained higher revs this race motor targeted. But in this guise the first Drixton Honda’s K4 engine produced 65 bhp at 10,200 rpm at the rear wheel – a substantial step up from the 52bhp of a good Manx Norton or Seeley Matchless, without too much of a weight penalty. In later life fitted with Kröber ignition, the Drixton Honda weighed in at a very competitive 129kg dry, equally split 50.5/49.5% front to rear.

"The Drixton Honda weighed in at a very competitive 129kg dry, equally split 50.5/49.5% front to rear."

“The Drixton Honda weighed in at a very competitive 129kg dry, equally split 50.5/49.5% front to rear.”

This favourable distribution was achieved by Drixl positioning the Honda engine quite far forward in his tubular steel duplex cradle frame, whose short 1340mm wheelbase meant the ensuing bike was fairly quick-steering. Extra stiffness was obtained via a robust-looking thick aluminium rod stamped by Marly with ‘Drixton 1968’ which connected the rear of the frame’s steering head with the forward of the pair of engine mounts cast into the cylinder head, plus a pair of slender tubes running backwards from the rearwards such mount to locating points screwed into the frame rails which acted as non-structural engine steadies.



The lateral frame tubes wrapped around the cylinder head to act as engine protection in the event of a crash. A 35mm Ceriani fork set at a 27º rake with a tubular steel swingarm with eccentric chain adjustment and twin Ceriani shocks were complimented by Fontana brakes – a massive 250mm four leading-shoe front drum, and 210mm twin leading-shoe rear – all off the shelf items made in and around Milan.

Terry Dennehy is seen here at the 1970 Assen Dutch TT cutting up the inside of a Kawasaki H1-R!

Terry Dennehy is seen here at the 1970 Assen Dutch TT cutting up the inside of a Kawasaki H1-R!

After some springtime shakedown races in the early season Temporada di Primavera street races on the Adriatic Coast, Terry Dennehy’s GP debut with the Drixton Honda came in the 1969 Dutch TT at Assen on June 28, ending inauspiciously with retirement owing to ignition problems. But in his next outing on the bike in the East German GP at the Sachsenring on July 13, the Aussie suffered the heartbreak of running out of petrol on the last lap while holding a secure second place behind the victorious Agostini’s works MV Agusta, although Terry eventually pushed the Honda home to claim fifth place in the end.



Next time out on August 3 he actually led the Finnish GP at Imatra, ahead of Ago, only to retire with ignition problems – a disappointment felt by the whole paddock, which had never seen a privateer challenge the red and silver MV fire engines, and especially not with a home brewed motorcycle like the Drixton Honda. Again, at the Italian GP held on September 7 that year at Imola rather than Monza, Dennehy ran a strong second behind eventual race-winner Alberto Pagani’s works Linto, before an engine misfire slowed him, though he finally coaxed the Honda over the line to finish fourth.

Terry during the 1969 Finnish GP at Tampere. A season full of issues yet still managed a 12th place finish!

Terry during the 1969 Finnish GP at Tampere. A season full of issues yet still managed a 12th place finish!

In the season-ending Yugoslav GP at Opatija a week later, he retired once again with perennial ignition woes – but still, he’d scored enough points to finish 12th in the 500cc World championship – one place ahead of fellow-Aussie and co-resident of Milan, Jack Findlay.



The Drixton Honda was obviously capable of being a really competitive privateer’s tool, even with the arrival on the scene in 1970 of the Kawasaki H1R two-strokes which were blindingly fast by comparison with the Italian Paton and Linto twins, and British singles and overbored Aermacchis contesting the premier class, but required the engineering talents and on-bike understanding of a Ginger Molloy to be kept running – aided by Ralph Hannan, who joined forces with the Kiwi two-stroke ace when Terry Dennehy eventually ran out of money.

"The Drixton Honda was obviously capable of being a really competitive privateer’s tool, even with the arrival of the Kawasaki H1R two-strokes which were blindingly fast by comparison with the Italian Paton and Linto twins."

“The Drixton Honda was obviously capable of being a really competitive privateer’s tool, even with the arrival of the Kawasaki H1R two-strokes which were blindingly fast by comparison with the Italian Paton and Linto twins.”

But with his race budget swollen by the beginning of what would later become a prime time business career shifting luxury Italian sports cars, Terry Dennehy planned to do the entire 1970 GP season with the Drixton Honda, except for the TT and Ulster GP on the grounds that he couldn’t expect to do well there on his debut, and the weather as he saw it was likely to be damp and cold.


CFMOTO 300SR


After the customary shakedown races in the Temporada di Primavera, Dennehy took the final championship point by finishing tenth in the season opening German GP on the Nűrburgring on May 3 – good going for his debut race on such a difficult track. But the next two races at Le Mans and Opatija saw him DNF in both the French and Yugoslav GP (the latter after once again running a firm second behind Ago, only to retire with oiled plugs), and while he finished 13th in the Dutch TT at Assen on June 27, it was a non-scoring finish under the points rules then in force. Better was to come at Spa-Francorchamps one week later, when he finished sixth on the Honda in the Belgian GP, albeit one place behind British rider Lewis Young on another Drixton-framed Honda.



More retirements followed for Dennehy and his Drixton at Imatra, Monza and the season ending Spanish GP at Montjuic Park, to conclude a disappointing season after the promise of 1969, which also left him pretty seriously broke. However, Terry had by now fallen into the Italian way of life, and was by now fluent in French and Italian. To supplement his income, he’d begun buying and selling luxury cars, building a strong client base in Europe and the USA, and developing an especially close relationship with Ferrari, for whom he’d become a trusted source of customers. This meant racing now came second to shifting four-wheeled metal for Terry, and so he decided to dispose of the Honda.

The 1972 Assen Nationals. Herman Timman leads Frank Coopman on the Kawasaki!

The 1972 Assen Nationals. Herman Timman leads Frank Coopman on the Kawasaki!

At the 1971 Dutch TT at Assen Dennehy started talking a deal with Dutch privateer Ben Heman to part with the Drixton, and the deal was concluded the next weekend at the Belgian GP at Spa. It entailed a straight swap for Heman’s brand new Yamaha TR350, allowing the Dutchman to move into the 500cc class, and Dennehy to join the two-stroke revolution, albeit in the smaller category. It didn’t bring him much luck, though, for in 1972 racing in Sweden he crashed and broke his femur, effectively ending his racing career. He moved to the south of France with his partner Danielle and son Neil, trading in expensive motor vehicles and often popping up at bike race meetings until on 31st December, 2001, he died in Belgium just 24 hours after contracting meningococcal disease, an ultra-aggressive form of meningitis, He was just 55 years old.


“At the 1971 Dutch TT at Assen Dennehy started talking a deal with Dutch privateer Ben Heman to part with the Drixton, and the deal was concluded the next weekend at the Belgian GP”


Ben Heman kept the Drixton Honda for a year, before approaching his friend and fellow racer Herman Timman to see if he’d be interested in acquiring it. Timman takes up the story: “I’d been racing since 1967, first with a BSA Gold Star then with a 350 Manx Norton, with various results,” says Herman, today a hale and hearty sixty-something.

After plenty of success and some failure. The Drixton Honda 500 was passed off to Herman Timman in a trade deal.

After plenty of success and some failure. The Drixton Honda 500 was passed off to Herman Timman in a trade deal.

“My friend Ben Heman approached me in the summer of 1972 to see if I was interested in buying his 500 Drixton Honda, which he had personally purchased from Terry Dennehy one year before. Well, I didn’t need to think twice about that, but money for me was the problem. Fortunately, Ben agreed on a part exchange, with some cash up front and some spare parts to make up the difference, including a 350 Manx cylinder head, a complete 250 Ducati street bike, etc.”



“As soon as I did my first laps at Assen on the Drixton Honda, I knew this could be the bike to win the Dutch 500 Championship on,” continues Herman. “It was in really great condition, with a lot of power compared to what I was used to, but so controllable – it had a really wide usable power band, and the handling felt perfect – and remember I was used to racing a Manx Norton, so I had high standards! And also there was the fantastic sound – it had a great exhaust note in those pre-silencer days.”


Yamaha Q2


“But because I had already missed the first five races in the 11-round Dutch Championship, I had to give it everything in the remaining six races to win the title. Well, I did manage to win the next five races in succession, leaving it only necessary to finish in the top four of the final round at Assen to win the championship. I followed my closest rival Frank Coopman on his fast three-cylinder Kawasaki all through that final race to finish second, and so I became Dutch Champion that year. I was very happy!”

Terry couldn't stay away from the Honda 500! He is seen here at Amaroo Park in 1975 leading in the Chesterfield Superbike Series round on Honda CB500 built by Hannan brothers.

Terry couldn’t stay away from the Honda 500! He is seen here at Amaroo Park in 1975 leading in the Chesterfield Superbike Series round on Honda CB500 built by Hannan brothers.

“Unfortunately, I had to sell the Drixton Honda in 1974,” recalls Herman, “then years went by and it belonged to various people in the Netherlands and Germany before in 2004 a Dutch collector named Mr. Schermer Voest bought it, and showed me the bike. Unfortunately, he later passed away, but his relatives offered me the chance to buy my former racer back after all these years. Of course, I couldn’t resist this once in a lifetime chance, so I bought it.”

Herman is seen here with WSBK Honda Riders after being reunited with his Drixton 500 and restoring it to its glory.

Herman is seen here with WSBK Honda Riders after being reunited with his Drixton 500 and restoring it to its glory.

“There had been quite a few modifications to the bike down the years, but nothing that could stop me bringing it back to original condition – it had Mikuni carbs, for example, but fortunately the twin-choke Weber and its manifold were still in the box of spare parts I got with it. With the help of our local Aermacchi wizard Jan Kampen we managed to get the bike running again like new, so now I’m very proud to be able to ride the genuine first ever Drixton Honda 500 in Classic parades today.”


Cassons


The Other Originals
Surprisingly, in view of the more than adequate performance that proved to be extractable from the production Honda K4 CB450 engine, coupled with its reasonable cost, it seems that only four real Drixton-framed 500cc Hondas were ever actually built by Marly Drixl himself. Besides Terry Dennehy’s bike which provided the template for the other three, a second machine was also purchased in 1969 by Swiss GP privateer Jean Campiche, who raced it in the 1970 GP season with two best finishes of tenth in Yugoslavia and Finland.

Besides Terry's, there were three other Drixton 500 frames built. Including Brennigan's one seen here...

Besides Terry’s, there were three other Drixton 500 frames built. Including Brennigan’s one seen here…

He kept it for 1971, finishing 7th in the East German GP that year, but it’s unclear what happened to the bike after that. British Continental Circus stalwart Godfrey Nash also acquired a Drixton frame from Marly in 1969, the year that he became the last man to win a World championship GP race on a Manx Norton, in the final race of the season in Yugoslavia. This allowed Nash to wind up a creditable third in the 500cc World Championship, on a 20-year old bike design running on 19-inch wheels, whereas all tyre development was now on 18-inch rubber.



Nash reasoned that the Drixton Honda was a suitable replacement for the Norton and purchased a chassis from Drixl, then built the bike up himself. But then came the news that his sponsor John Tickle had purchased the rights to the Manx Norton design from Colin Seeley, as well as all the remaining factory spares – and would be producing a new, lighter 18-inch wheeled Tickle T5 frame for the Norton engine which he wanted Nash to race for him in the 1970 season. This made the Drixton Honda surplus to requirements, so Nash sold it to fellow GP privateer Lewis Young, who rode it in the 1970 GP season with a best result of fifth in the Belgian GP, one place ahead of Dennehy on the original Drixton. After that, the bike was sold to Brian Lee, one of Syd Lawton’s protégés, who converted it from the limiting four-speed gearbox specification to a five-speeder before eventually in turn selling it on.

A fourth bike was also constructed by Drixl for an Aussie mate of Dennehy’s, Ray Brennigan - but Drixton frame production came to an end in 1969 after Marly suddenly disappeared from Baroni's workshop under something of a cloud

“A fourth bike was also constructed by Drixl for an Aussie mate of Dennehy’s, Ray Brennigan – but Drixton frame production came to an end in 1969 after Marly suddenly disappeared from Baroni’s workshop.”

A fourth bike was also constructed by Drixl for an Aussie mate of Dennehy’s, Ray Brennigan – but Drixton frame production came to an end in 1969 after Marly suddenly disappeared from Baroni’s workshop under something of a cloud, later resurfacing just across the Swiss border having opted out of the motorcycle frame business altogether in favour of an electrical supply company. He never built another bike.



The Brennigan Honda later wound up in the UK in the hands of Dick Linton, himself a Drixton Aermacchi racer who had taken over the Aermacchi racing parts business from Syd Lawton on his retirement. Dick had intended his son Mark should start Classic racing with the Drixton-framed Honda, but Linton Junior opted for a TZ350 Yamaha instead, and after I tested the bike at Brands Hatch in 1985 for a magazine article, the Honda was sold to an American friend of mine, Pete Johnson.

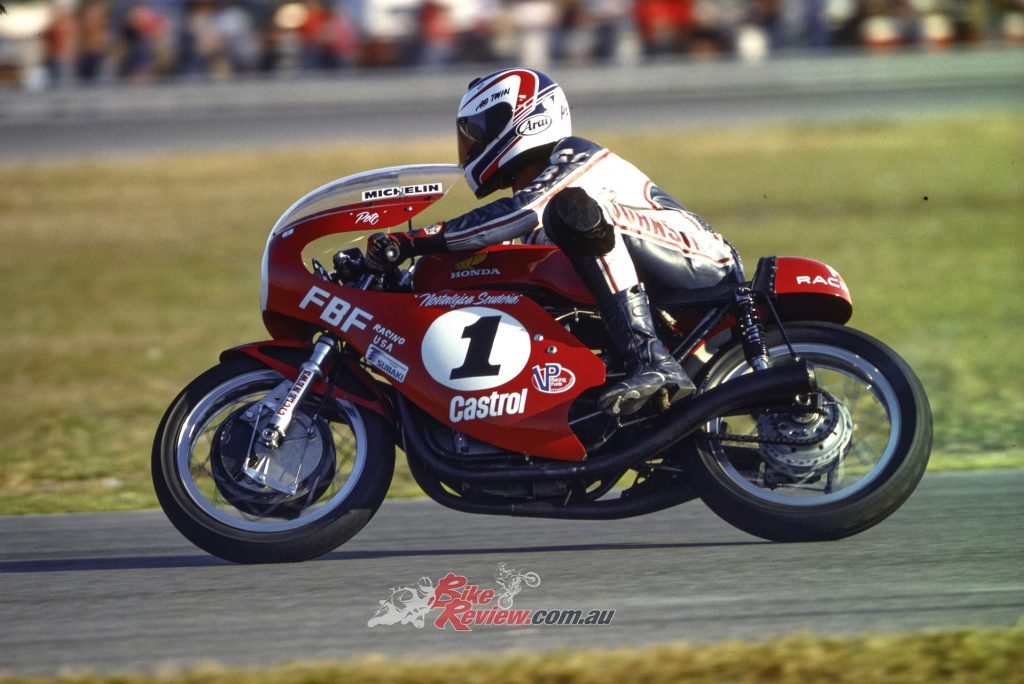

Pete Johnson ended up winning a heap of races on his Drixton. Including the Daytona Premier 500 in 1989...

Pete Johnson ended up winning a heap of races on his Drixton. Including the Daytona Premier 500 in 1989…

Aided by the preparation skills of noted tuner Eraldo Ferracci – who would later of course take Doug Polen to the 1991 World Superbike title on a Fast by Ferracci Ducati, the last time the championship was ever won by a privateer – Pete swiftly became unbeatable on the Drixton Honda 500 in the USA, defeating Team Obsolete’s Isle of Man TT-winner Dave Roper to win the 1987 AHRMA 500 Premier title. Pete then sanctioned the construction of two identical replicas of his Drixton chassis, one for himself for a backup bike, the second for his friend Kurt Liebmann – these being the first of what would be hundreds of copies of Drixl’s design, to a greater or lesser degree of accuracy.

Alan was no stranger to Pete's Drixton 500, seen here testing it at Brands Hatch in 1984.

Alan was no stranger to Pete’s Drixton 500, seen here testing it at Brands Hatch in 1984.

Meanwhile my wife Stella and I had founded Britain’s CRMC Historic racing club back in 1978, and we’d carefully inserted provision for the construction of identical replicas of original motorcycles in the club rules, to cater for those who could not afford or were reluctant to risk racing an original golden oldie. They had to be genuine replicas, though, in order to preserve the truth of time – which after all is surely the whole point of Historic racing. But even so we weren’t prepared for what happened after former racer Asa Moyce, a Londoner who’d moved to Ulster, wrote to me after my test of Dick Linton’s ex-Brennigan bike was published in a British magazine.

Unfortunately, the Drixton was heavily copied. As time went on, the bikes strayed further and further away from the originals.

The Drixton was heavily copied. As time went on, the bikes strayed further and further away from the originals.

He was asking if he could have a set of the photos we’d taken of the bike because he wanted to build ‘a replica’ of it to race in CRMC events. Well, more than 100 frames later after I’d sent him the prints, Asa had not only never found time to ride such a bike in CRMC events himself, he’d also driven a coach and horses through the club’s replicas policy – so that the tail ended up wagging the dog. The Moyce machines have ended up around the world, and have themselves in turn been copiously copied by others – most of them differing in several respects from the original Drixton frame, including the steering geometry.

While the Drixton Honda 500 has been heavily copied and replicated. Nothing could ever replace that amazing original frame...

While the Drixton Honda 500 has been heavily copied and replicated. Nothing could ever replace that original frame…

Many have also concocted a 350cc version of the Drixton frame to accommodate the smaller capacity CB350 variant of the K4 Honda parallel-twin engine, although strictly speaking these should never have been accepted as eligible for Classic racing, at least under CRMC rules, since no such bike was ever constructed in the Classic era. Marly Drixl only ever built 500cc Drixton Hondas, and it seems that he only made four of those before returning to Switzerland in 1969, opting out of frame-building…
